On the MV Agusta 3-cylinder models, the rear brake fluid reservoir occupies a critical thermal zone between the engine block and the exhaust manifold. This proximity induces radiant heat transfer, compromising fluid integrity and resulting in hydraulic failure under high-stress conditions.
The Relocation kit alters the reservoir to increase the air gap from these primary heat sources. The assembly utilises a laser-cut stainless steel shield to deflect radiant energy, a high-wall, elongated brake lines designed for superior thermal insulation.

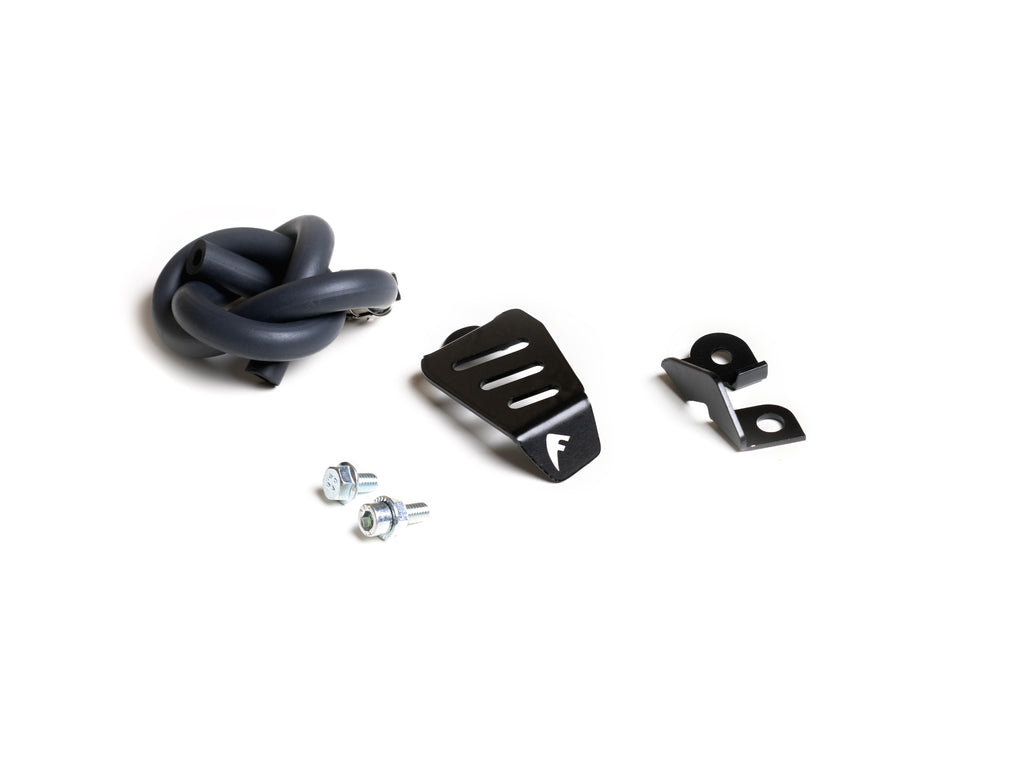

COMPONENTS
-

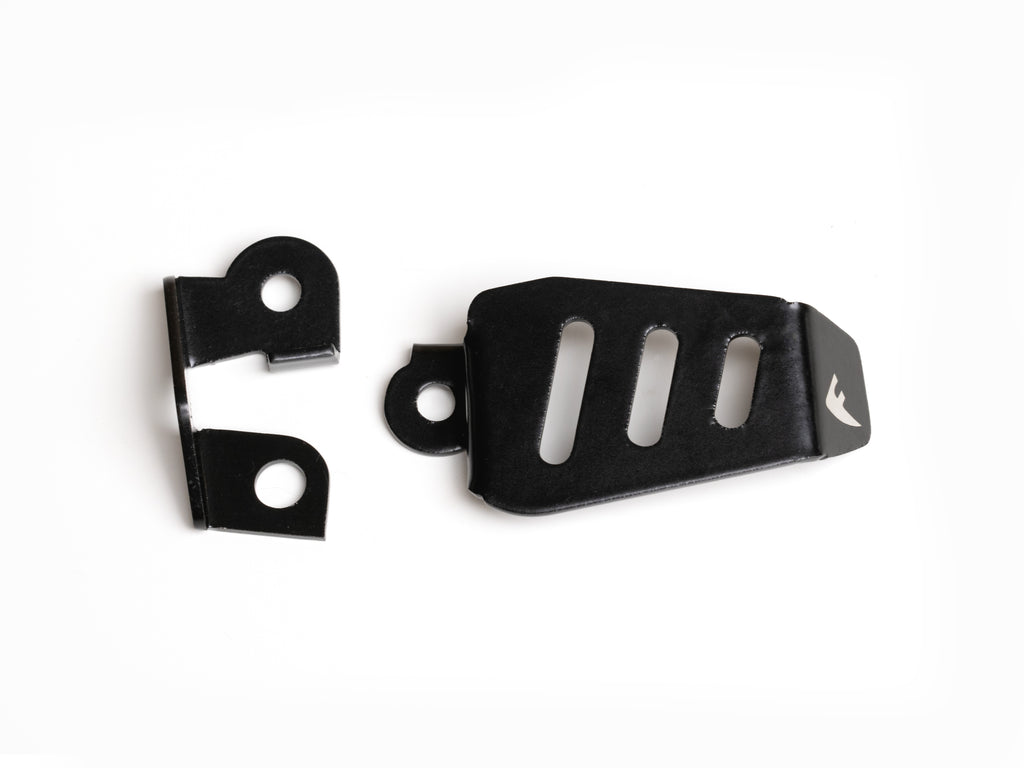

Relocation Structure: 01 Stainless steel bracket designed to alter the reservoir’s spatial coordinates away from the engine block and exhaust.
-

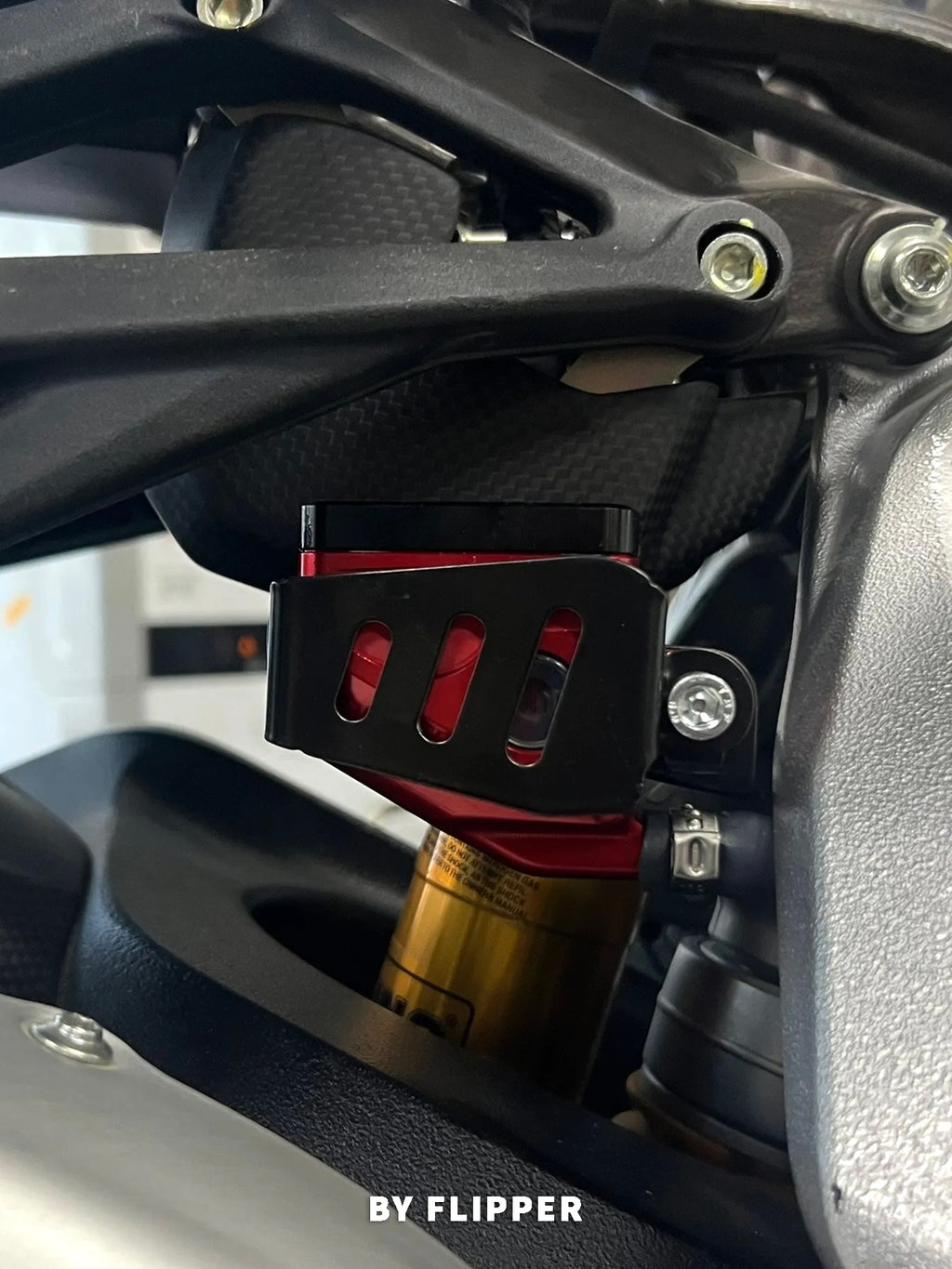

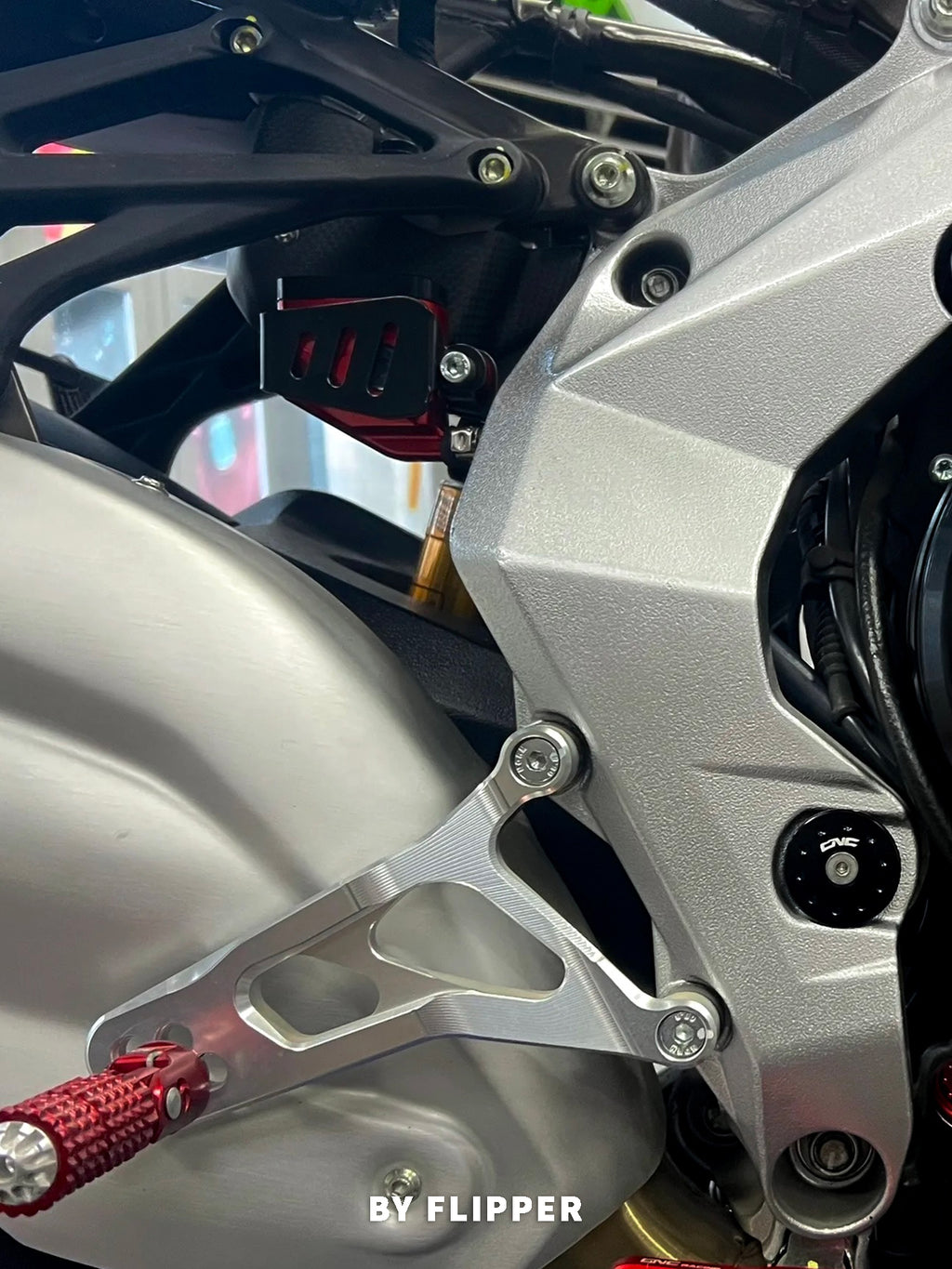

Thermal Shield: 01 Laser-cut heat guard for radiant heat deflection from the exhaust manifold.
-

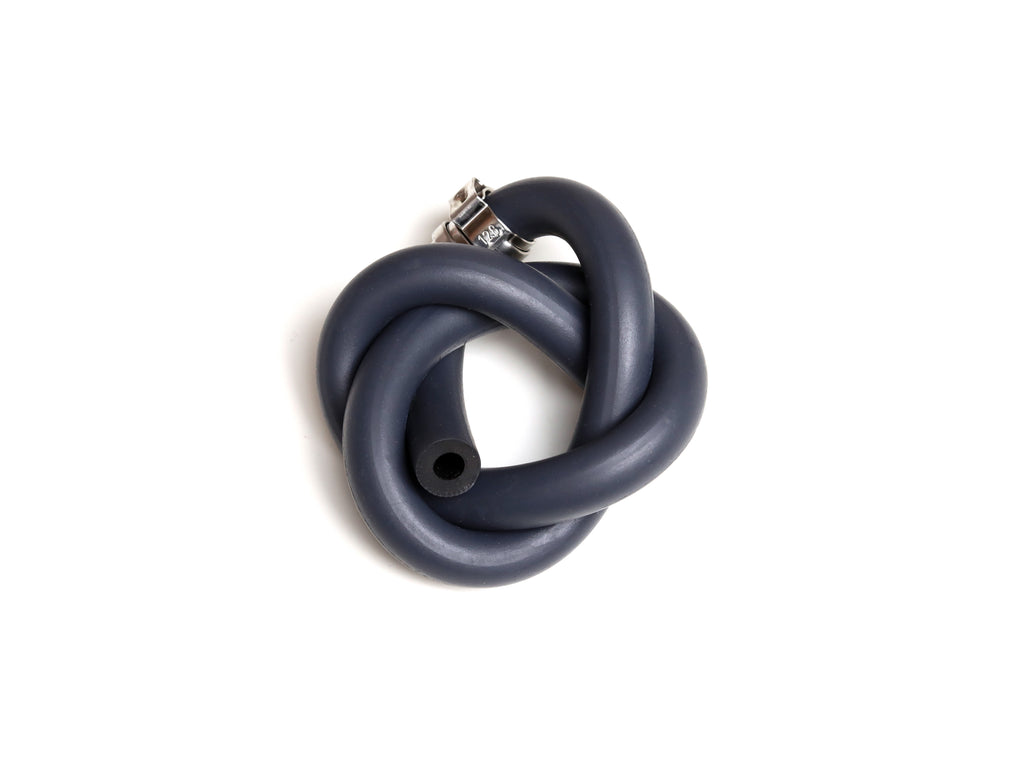

Insulated Line: 01 Elongated EPDM brake hose. Chemically compatible with all types of DOT brake fluids.
NOTES
The use of a polymer-based (OEM) reservoir is advised. Synthetic polymers possess lower thermal conductivity than billet metals, providing a final barrier against heat absorption during thermal cycles.
APPLICATIONS
MV Agusta 800 Series
MV Agusta F3 800 - All variants
MV Agusta Brutale 800 - All variants
MV Agusta Dragster 800 - All variants
MV Agusta Superveloce 800 - All variants
