Lucere illuminated CNC billet aluminium racing switch set for MV Agusta motorcycles
1/3

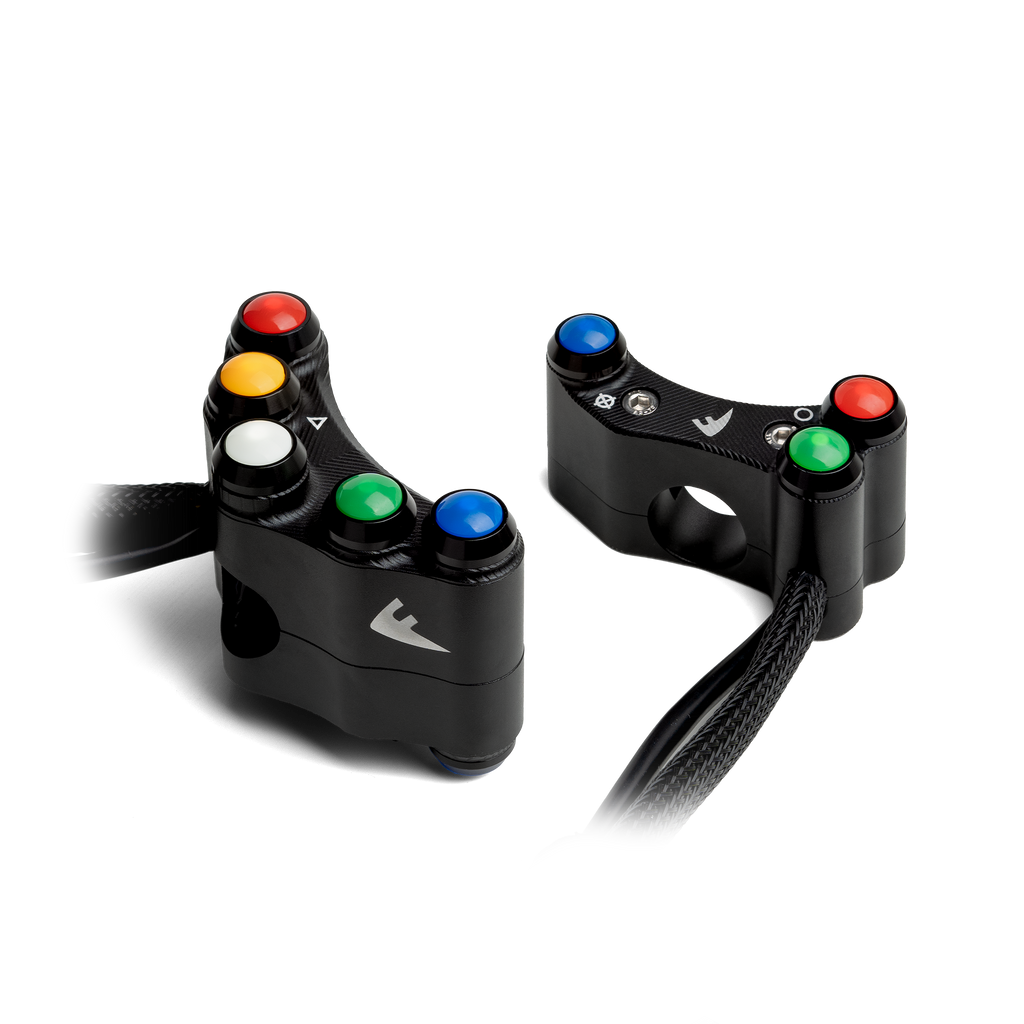

  • Lucere illuminated CNC billet aluminium racing switch set for MV Agusta motorcycles

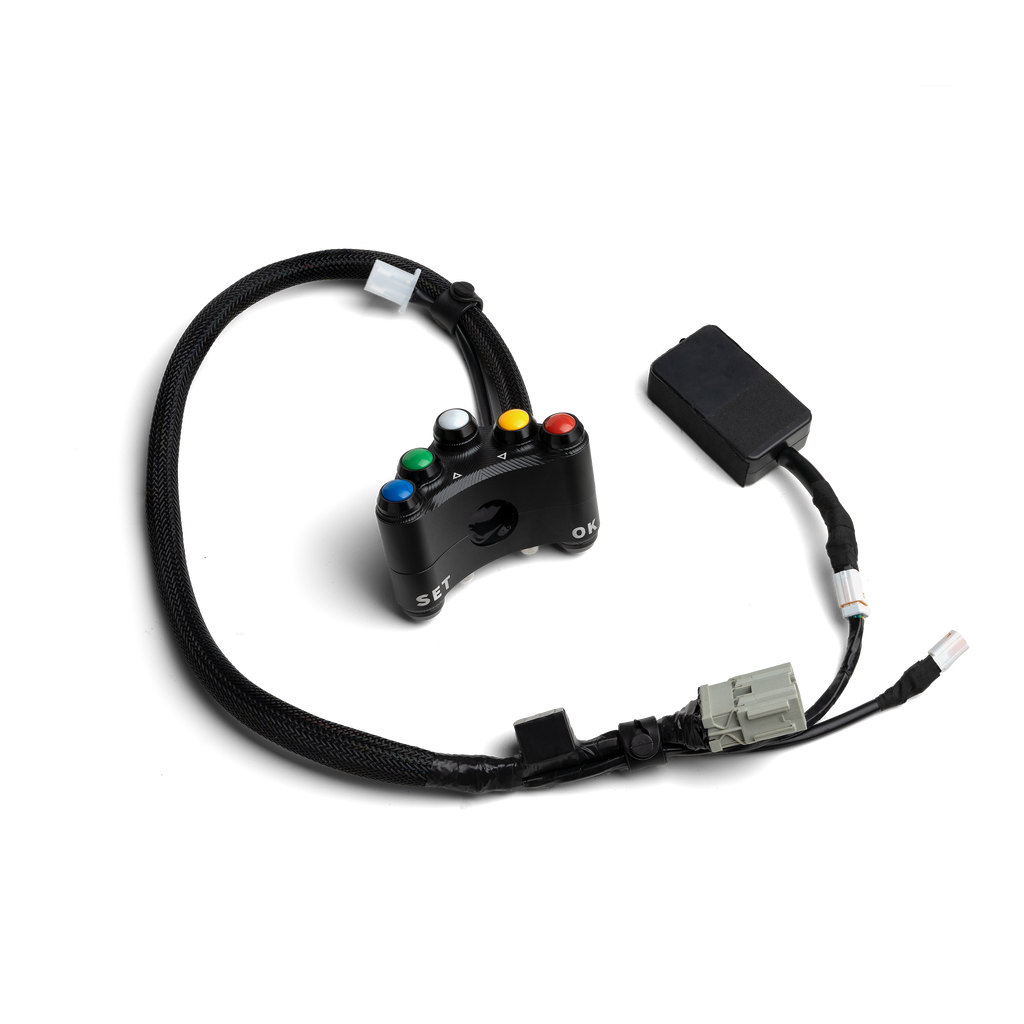

  • Left-side Lucere CNC aluminium illuminated switchgear for MV Agusta F3 F4 Brutale, Dragster, Rivale and Stradale with control board

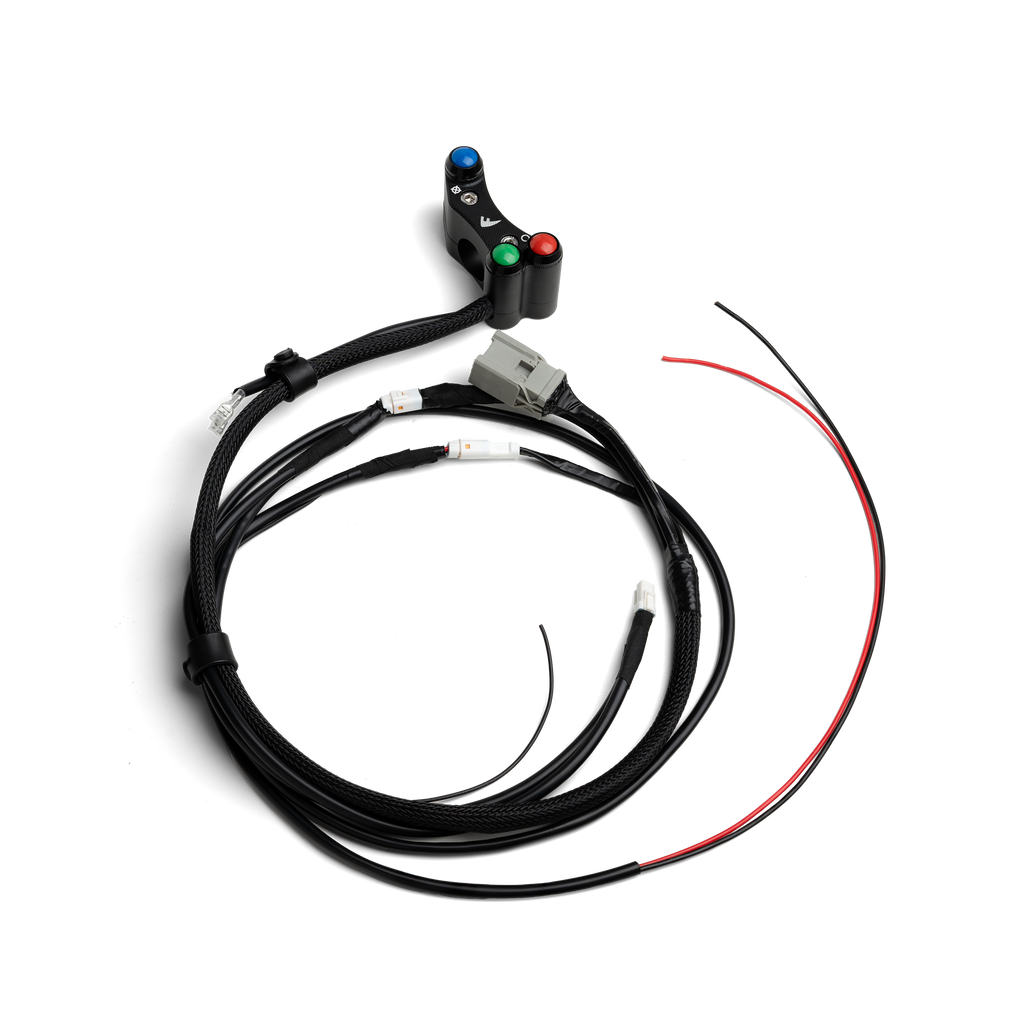

  • Right-side Lucere CNC aluminium illuminated switch set for MV Agusta F3 F4 Brutale, Dragster, Rivale and Stradale
  • Lucere illuminated CNC billet aluminium racing switch set for MV Agusta motorcycles
  • Left-side Lucere CNC aluminium illuminated switchgear for MV Agusta F3 F4 Brutale, Dragster, Rivale and Stradale with control board
  • Right-side Lucere CNC aluminium illuminated switch set for MV Agusta F3 F4 Brutale, Dragster, Rivale and Stradale
'LUCERE' Illuminated Handlebar Switch Set for MV Agusta F3, F4, Brutale, Dragster & Rivale 2011 to 2017

'LUCERE' Illuminated Handlebar Switch Set for MV Agusta F3, F4, Brutale, Dragster & Rivale 2011 to 2017

£645.00 GBP
Unique synthesis of bespoke hardware and integrated electronic design
CNC aluminium assembly and metal-housed illuminated control switches
LED back-lit switchs for enhanced tactile and visual clarity
Auxiliary control button for optional custom hardware integration
OEM connectors with polyurethane-encapsulated waterproof terminals
IP68 JST-JWPF connectors for low-profile & secure wiring arrangement
Synchronised indicator feedback for real-time visual confirmation
Bespoke commissions available for prioritised model development.

The 'Lucere' handlebar switch set is a refinement of the rider interface, specifically developed for the MV Agusta 2011 to 2017 models.

Each housing is CNC-machined from billet aluminium, sandblasted, and hard-anodised to a satin black finish. The assembly replaces standard plastic with metal-housed, IP68-rated switches featuring copper-based silver contacts.

Internal electronics are encapsulated in black polyurethane potting, sealed and tested against the UK winter.

The system synchronises button illumination with the vehicle’s indicators. It is an application of hardware and light designed to exist as a native extension of the machine.

The interface includes a dedicated auxiliary button for low-voltage control signal. facilitates the integration of external hardware—garage triggers, auxiliary lighting, exhaust valve, or lap timers.



COMPATIBILITY



Direct OEM replacement for:

8000B4567 - MV Agusta LH Switch

8000B4568 - MV Agusta RH Switch

8000C2420 - MV Agusta LH Switch

8A00B4568 - MV Agusta RH Switch (F4 RR & RC 2011 - 2016)

For the 8A00B4568 (F4 RR & RC 2011–2016), the main connectors remain direct-fit. The brake sensor connector varies, which utilises a two-terminal, non-polarised connection to accommodate the specific harness variation on these models.

For Brutale 800 2016 - 2017, Dragster RR RC- SCS - RC SCS - RR PIRELLI - RR AMERICA 2018 -2020 with 8000C2376 - MV Agusta LH Switch, 'Engine MAP' and 'Hazard light' functions apply.

If your vehicle utilises this assembly, please contact us directly. We will commission a set specifically to accommodate these control requirements. Note that as these units are made to order, additional processing time will apply.

Non-compatible with

8000A6388 - (F4 1000 S 2010)

8000A0922 - (F4 1000 S 2010)



SCHEMATIC



LUCERE SWITCH MV AGUSTA 2011 TO 2017 SCHEMATIC

This document provides wiring and installation reference for the 'Lucere' handlebar switch set. Installation must be carried out by a qualified mechanic. Improper wiring may result in component damage.



APPLICATIONS



F4 1000 RR 2011 - 2022

F4 RR 2013 - 2015

F4 RC 2015 - 2016

Brutale 675 2012 - 2015

Brutale 800 2013 - 2015

Brutale 800 RR 2015 - 2016

Dragster 2014 - 2017

Dragster RR 2015 - 2016

Dragster LH 2016

Brutale 920 2011 - 2012

Brutale 1090 R 2012 - 2013

Brutale 1090 RR 2012 - 2013

F3 675 2012 - 2016

F3 675 GOLD SERIES 2013

F3 675 RC 2016

F3 800 2012 - 2016

F3 800 RC 2016

F3 800 AGO 2014 - 2015

F4 1000 R 2011 - 2012

F4 2013 - 2015

F4 R 2013 - 2015

F4 1000 RR 2011 - 2012

F4 RR 2013 - 2015

F4 RC 2015 - 2016

Rivale 800 2014 - 2017

Stradale 800 2015 - 2016

RVS 1 2018



Frequently Asked Questions
Does it come with any warranty?


The 'Lucere' series is backed by a one-year warranty from the date of delivery, covering manufacturing defects under documented operational use.

Should a technical discrepancy arise within this period, we provide resolution through consultation, repair or replacement.

Please note this coverage excludes damage resulting from improper installation, misuse, or standard environmental wear. For comprehensive terms, consult our Warranty Policy.
Can I commission a bespoke switch set for a model not currently listed?

Yes. We accept commissions for prioritised development. This process fast-tracks the engineering for your specific motorcycle, moving it to the top of our production schedule.

What is the process?

Once a commission is initiated, we handle all technical development in-house. This includes the engineering of bespoke PCBs and custom wiring looms to ensure the set functions natively with your vehicle's electronics. We do not require your original components; we source all necessary OEM hardware ourselves to facilitate testing phases.

How long does it take?

Development timelines are dictated by the complexity of the motorcycle's electrical architecture. We will provide a projected completion date and cost once we have reviewed the requirements for your specific model.
